📈 KLineChartQuant

Crisp Rendering · High Performance · Optimized Interaction · Mobile-Friendly

---

A lightweight financial K-line charting library focused on quantitative trading scenarios. Agent is a first-class citizen — supports AI Agent direct control of chart operations, providing TradingView-level interaction experience.

🤖 Agent-Native Architecture

KLineChartQuant treats the Agent as a first-class citizen of the chart, equal in standing to the human user. It is not a chat layer bolted on top: the Agent operates the chart through the same primitives as the UI, and the endpoints it acts on are exposed by the chart core itself.

• The Agent is the user, and the user is the Agent: The Agent is not a guest of the chart; it is an operator with the same standing as the person in front of the screen. Everything a user can do through the UI, the Agent can do through the same entry points, and vice versa. Equality of access is the design premise, not a toggle.

• The Agent serves the chart, not a stream of text: An embedded Agent exists to drive the chart the user is looking at, not to bury them in prose. Its output lands as real interaction on the surface the user sees—indicators, drawings, viewport changes—with conversation only as the means. The chart and its interaction remain the subject.

• AI-Native architecture, not a parasitic layer: Tools are woven into the chart API primitives as aspects rather than wrapped in a separate layer, so there is one implementation, naturally consistent state, and zero bridge overhead. Zed is the reference: its agent is built into the editor's own foundation (GPUI). VS Code is the counter-example: Copilot and Claude Code enter through the extension layer, where the Claude extension is essentially a GUI wrapper around an external CLI. The former makes the Agent native; the latter makes it parasitic.

• The Agent pushes the architecture toward stability and efficiency: Adding an Agent adds no architectural burden; it forces the architecture to be better. Because every capability must be exposed through a single API and unified primitives, state is consolidated into one source of truth and kept absolutely consistent—scattered state, derived copies, multi-write paths, parallel pipelines, and races cannot survive. The Agent and the user travel the same path, and that constraint settles into a more stable, testable chart core.

• No blind use of MCP: The project evolved through three stages—an early JSON-configuration approach, then MCP, and finally an AI-Native architecture. MCP demands an intermediate layer or DSL that spends tokens, loses information, and keeps a second copy of state that invades frontend logic. The current design drops the bridge entirely: tools register directly on the chart core, and a single call reaches the kernel.

• The reactive kernel is the Agent's foundation: StateKernel is the single source of truth—only actions may write, computed values derive automatically, and external consumers receive readonly signals, backed by batched atomic snapshots and frozen state. The kernel is zero-dependency, extremely light, and has controllable render timing. This lets the Agent share the user's exact state at near-zero cost and keeps tools a subset of actions rather than a parallel system.

✨ Core Features

• Agent Native - The chart core exposes its capabilities as @Tool-decorated domain primitives, and the Agent calls the same primitives as the UI. Tools are a subset of actions: one shared state, one execution path, no bridge layer
• Crisp Rendering - Full-chain ResizeObserver driven, physical pixel alignment, K-lines, wicks, and lines are sharp and clear on all DPR screens
• Plugin Architecture - Renderer plugin-based design, supporting dynamic registration, configuration, and lifecycle management
• Custom Markers - Supports semantic configuration of custom markers and custom information
• High Performance - Smoothly handles tens of thousands of data points, no lag during zoom or pan; supports 190-200fps on 200Hz displays with single-frame generation time as low as 2ms
• Multi-Backend Rendering - Submit drawing primitives once, render via WebGPU, WebGL, or Canvas2D. WebGPU provides hybrid DOM canvas (no compositeTo copy), single-command-buffer-per-frame submission with 4x MSAA, and per-instance geometry caching via ResourceTable. Automatic fallback chain: WebGPU → WebGL → Canvas2D. Reaching 190fps on 200Hz displays with per-frame GPU time under 1ms
• Optimized Interaction - Stable zoom anchor, precise crosshair cursor, smooth drag
• Mobile-Optimized Interaction - Long-press crosshair for data exploration, tap to dismiss, slide to browse data without triggering chart scroll, gesture-based scroll mode

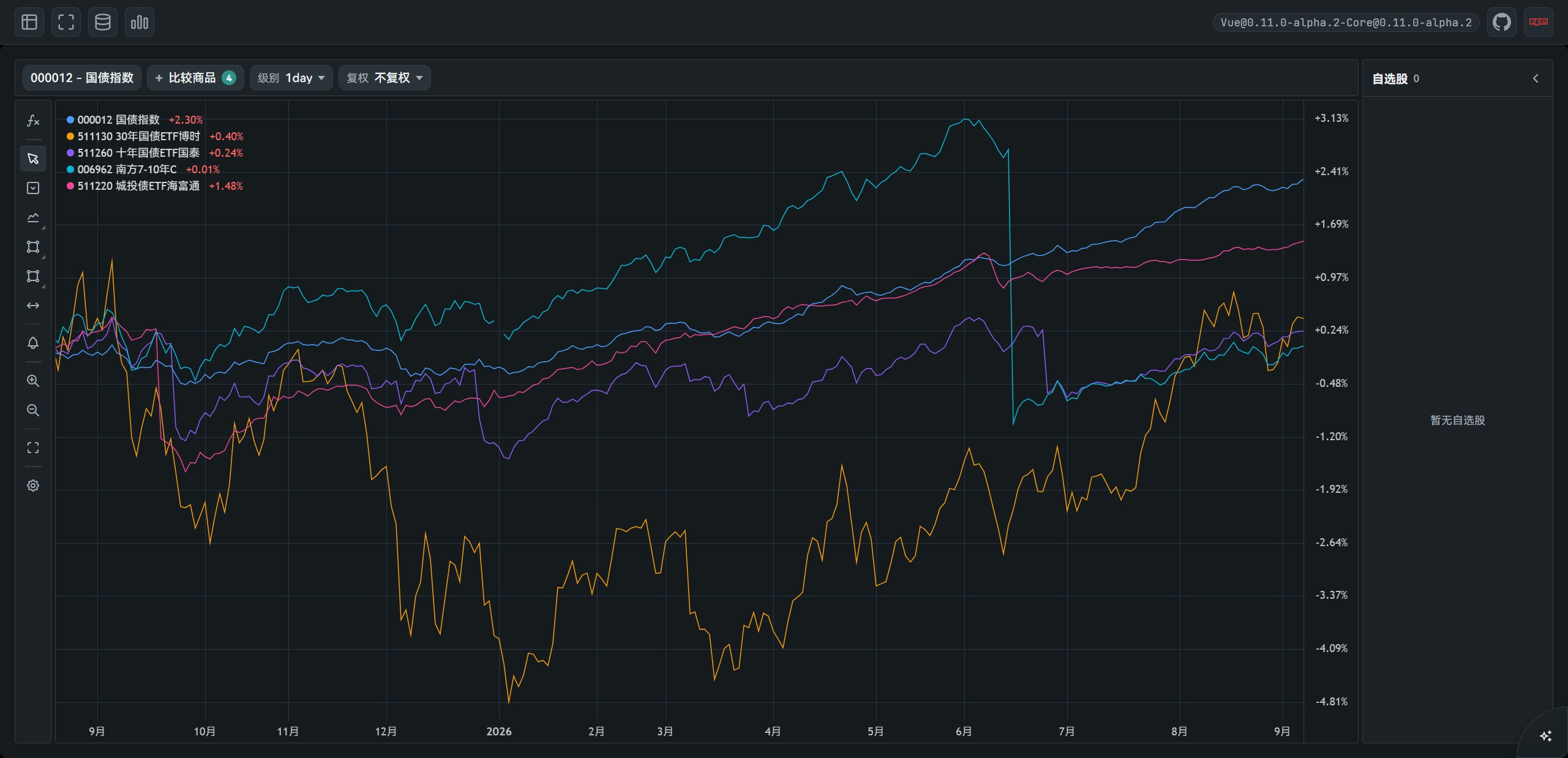

• Multi-Symbol Comparison - Supports unlimited number of instruments for trend comparison
• Multi-Source Aggregation - Supports aggregation and unification of multiple data sources

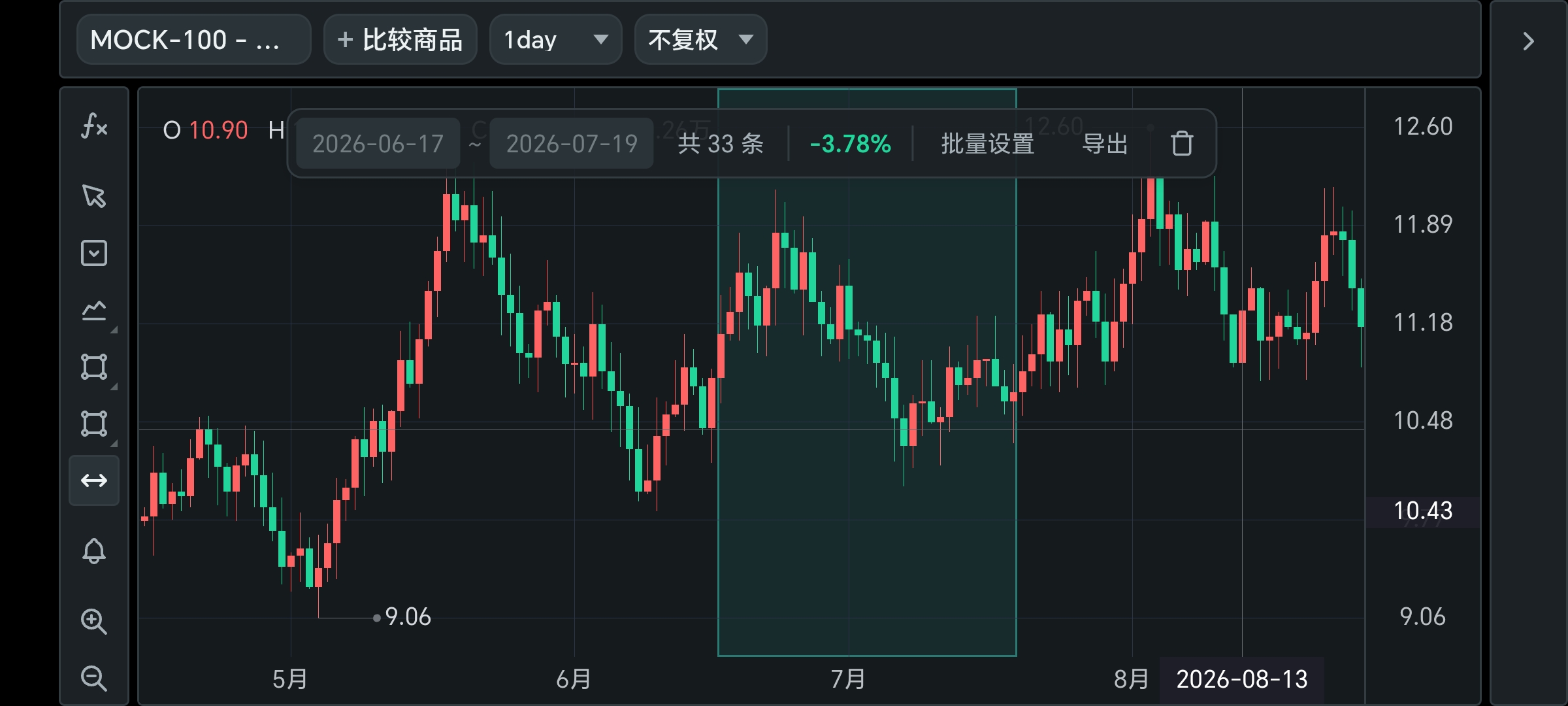

• Batch Data Export - Select a date range and export multiple stocks' K-line data into a single CSV file, with progress indication
• Custom Tooltip - Fully customizable tooltip via named slots (#kline-tooltip, #marker-tooltip), with engine-provided hover data, position, and styling

📐 System Architecture

KLineChartQuant is a pnpm monorepo. The framework-agnostic core engine exposes a unified ChartController (readonly signals + commands); Vue / React / Angular bindings only handle mounting, event forwarding, and reactivity bridging. The AI Agent drives the chart through the same @Tool primitives as the UI, sharing one state source instead of a bridge.

flowchart TB
    subgraph app["UI Layer / Framework Bindings"]
        UI["UI Layer"]
        VuePkg["@363045841yyt/klinechart<br/>Vue 3 components · useChart"]
        ReactPkg["@363045841yyt/klinechart-react<br/>KLineChartWC (wraps Vue-built Web Component)"]
        AngularPkg["@363045841yyt/klinechart-angular"]
        Agent["AI Agent"]
        AgentRt["@363045841yyt/klinechart-agent-runtime"]
    end

    subgraph core["Core Engine @363045841yyt/klinechart-core"]
        Ctl["ChartController<br/>signals + commands"]
        Chart["Chart facade"]
        Kernel["StateKernel<br/>Reactive SSOT"]
        Data["Data Layer<br/>SeriesRepository · Buffers"]
        Pipe["Rendering Pipeline<br/>FrameTransaction · Scene/Layer"]
        GPU["WebGPU / WebGL2 / Canvas2D"]
        Plugin["Plugin Subsystem<br/>PluginHost · RendererPlugin"]
        Biz["Indicators · Markers · Drawing<br/>Timeshare · Compare · Components"]
    end

    subgraph conn["Market Data Backends"]
        Go["GoTDX-Connecter<br/>gotdx :8080"]
        Bn["GoTDX-Connecter<br/>Binance depth :8081"]
        Bs["Baostock-Tradingview-Connecter<br/>BaoStock / TradingView :8000"]
    end

    UI --> VuePkg
    UI --> ReactPkg
    UI --> AngularPkg
    VuePkg -->|"Web Component"| ReactPkg
    Agent --> AgentRt
    VuePkg --> Ctl
    ReactPkg --> Ctl
    AngularPkg --> Ctl
    AgentRt -->|"@Tool primitives (same path as UI)"| Ctl
    Ctl --> Chart
    Chart --> Kernel
    Chart --> Data
    Chart --> Pipe
    Chart --> Plugin
    Plugin --> Biz
    Biz --> Pipe
    Pipe --> GPU
    Go -->|market data| Data
    Bn -->|market data| Data
    Bs -->|market data| Data
    Kernel --> Data
    Kernel --> Pipe

Loading

• Core engine — headless chart engine + ChartController; depends on no UI framework.
• StateKernel — single source of truth: readonly signals for reads, actions for writes, computed() for derivation, effect() for DOM side effects.
• Rendering — submit primitives once, render via WebGPU / WebGL2 / Canvas2D with automatic fallback (WebGPU → WebGL → Canvas2D).
• Data layer — unified SeriesRepository + incremental buffers + fetch scheduler; multi-source aggregation (gotdx / BaoStock / TradingView / mock) and Binance depth.
• Plugin subsystem — PluginHost / HookSystem / EventBus / RendererPluginManager; indicators, markers and drawing tools plug in as Scene Layers.
• React via Web Component — @363045841yyt/klinechart-react's KLineChartWC renders the <kline-chart> Custom Element bundled from the Vue package (@363045841yyt/klinechart/web-component).
• Agent Native — @363045841yyt/klinechart-agent-runtime orchestrates the Agent, which invokes the core's @Tool-registered primitives—the same entry points the UI uses.

See docs/architecture.md for the full architecture document.

⚡ Performance

KLineChartQuant ships a self-developed rendering engine that submits drawing primitives directly to Canvas, WebGL, or WebGPU, so a single codebase can switch rendering backends seamlessly. The numbers below come from the reproducible benchmark in bench/ (node bench/run.mjs). Default setup: headless Chrome, 1180 × 640 viewport, DPR 2, 4× MSAA, 120 warm-up frames + 600 sampled frames. FPS is requestAnimationFrame-observed and capped by the display refresh rate (200 Hz here); Canvas2D has no page-level GPU timer, so its GPU time is empty.

WebGPU Command Submission

Seven command buffers submitted as one batched queue.submit versus seven separate submissions:

Submission	P50 (ms)
One queue.submit (batched)	0.002
Seven queue.submit (split)	0.011
Speedup	5.50×

MA5 / MA20 / MA60 (Simple Indicator)

Visible K-lines	Backend	Prepare P50 (ms)	CPU Submit P50 (ms)	GPU P50 (ms)	FPS	1% Low	Frame P99 (ms)	Jank
1,000	Canvas2D	0.200	0.300	N/A	200.0	192.3	5.20	0.00%
1,000	WebGL2	0.400	0.700	0.338	200.0	192.3	5.20	0.00%
1,000	WebGPU	0.400	1.300	0.009	199.7	192.3	5.20	0.17%
5,000	Canvas2D	0.600	1.100	N/A	106.9	65.8	15.20	24.50%
5,000	WebGL2	1.200	1.700	0.178	200.0	192.3	5.20	0.00%
5,000	WebGPU	1.000	1.800	0.040	200.0	192.3	5.20	0.00%
10,000	Canvas2D	1.100	1.900	N/A	97.2	65.8	15.20	30.67%
10,000	WebGL2	1.400	1.700	0.252	198.0	190.6	5.25	0.17%
10,000	WebGPU	1.200	1.900	0.041	199.3	192.3	5.20	0.00%

Ichimoku (Complex Rendering Workload)

Visible K-lines	Backend	Prepare P50 (ms)	CPU Submit P50 (ms)	GPU P50 (ms)	FPS	1% Low	Frame P99 (ms)	Jank
1,000	Canvas2D	0.700	0.400	N/A	163.3	98.0	10.20	5.67%
1,000	WebGL2	1.900	0.700	0.339	200.0	192.3	5.20	0.00%
1,000	WebGPU	1.500	0.900	0.014	199.3	192.3	5.20	0.00%
5,000	Canvas2D	3.400	1.700	N/A	67.8	49.5	20.20	94.17%
5,000	WebGL2	3.500	1.400	0.227	188.4	99.0	10.10	2.17%
5,000	WebGPU	3.500	1.500	0.054	178.6	99.0	10.10	2.50%
10,000	Canvas2D	6.700	2.900	N/A	60.4	48.8	20.50	100.00%
10,000	WebGL2	6.500	2.400	0.885	101.4	66.2	15.10	30.33%
10,000	WebGPU	6.800	2.700	0.158	94.9	66.2	15.10	36.17%

Note: The frame drops (jank) in the Ichimoku case are not caused by the rendering engine — they stem from a CPU-side bottleneck, which will be optimized in a future release.

📡 Data Sources

KLineChart requires a market data backend. Supported data sources:

Data Source	Description	Docs
gotdx	Tongdaxin (GOTDX) quotes: A-share / futures / MAC, served by GoTDX-Connecter	GoTDX-Connecter
baostock	BaoStock A-share daily / weekly / monthly & minute K-lines, served by Baostock-Tradingview-Connecter	BaoStock
tradingview	TradingView global instruments, served by Baostock-Tradingview-Connecter	BaoStock
mock	Debug only: local MOCK-100 / MOCK-10000 K-lines, no backend needed, always online	—

Backend repos live alongside this one (outside the monorepo).

One-Command Dev Startup

Clone the data-source backends first (idempotent: skips directories that already exist):

pnpm setup

Then run pnpm dev with a -c argument to start the frontend and the selected connecters together:

pnpm dev                      # frontend only (Vite dev server)
pnpm dev -c all               # frontend + all backends (gotdx + binance + baostock)
pnpm dev -c gotdx baostock    # frontend + selected backends
pnpm dev -c tdx               # aliases supported (tdx / g / b / bnb / all)
pnpm dev -c all --lan         # same, dev server bound to 0.0.0.0 (LAN accessible)

Common shorthands:

pnpm dev:all                  # frontend + all backends
pnpm dev:g                    # frontend + gotdx (Tongdaxin)
pnpm dev:b                    # frontend + BaoStock / TradingView
pnpm dev:bnb                  # frontend + Binance depth
pnpm dev:lan:all              # frontend (0.0.0.0) + all backends

Parallel process logs stay in one terminal and are separated by colored source prefixes: [vite], [gotdx], [binance], and [baostock].

Backend only (no frontend):

pnpm connecter                # all backends
pnpm connecter gotdx          # gotdx (Tongdaxin) :8080
pnpm connecter baostock       # BaoStock / TradingView :8000

After pnpm setup, no extra setup is needed. The dev server proxies /api/stock → :8000 (Baostock-Tradingview-Connecter) and /api/public → :8080 (GoTDX-Connecter).

🚀 Quick Start

3. Install and Use

npm install @363045841yyt/klinechart @363045841yyt/klinechart-core

Use the component:

<template>
  <div class="app-container" :data-theme="currentTheme">
    <KlineChart v-model:theme="currentTheme" :custom-data="customData" :settings="chartSettings" />
  </div>
</template>

<script setup lang="ts">
  import { ref } from 'vue'
  import type { ChartSettings } from '@363045841yyt/klinechart-core'
  import { type CustomDataSource, KlineChart } from '@363045841yyt/klinechart'
  import demoData from './demo-data.json'

  const currentTheme = ref<'light' | 'dark'>('dark')

  const customData = ref<CustomDataSource>(demoData as CustomDataSource)

  const chartSettings: ChartSettings = {
    showGridLines: true,
    isAsiaMarket: true,
    showVolumePriceMarkers: false,
    mainLeftAxisDisplaySetting: 'none',
    theme: 'dark',
    colorPresetSettings: {
      dark: {
        candleUpBody: '#e85d04',
        candleDownBody: '#1b4332',
        crosshairLine: '#faa307',
        gridMajor: '#3e2723',
      },
    },
  }
</script>

<style>
  .app-container {
    display: flex;
    flex-direction: column;
    height: 80vh;
  }

  .app-container[data-theme='dark'] {
    background: #000;
    color: #e5e7eb;
  }
</style>

Import CSS in main.ts:

import '@363045841yyt/klinechart/style.css'
import { createApp } from 'vue'
import App from './App.vue'

createApp(App).mount('#app')

Slot Usage — Custom Tooltip:

<KlineChart>
  <template #kline-tooltip="{ hoverData, upColor, downColor }">
    <div class="custom-tooltip">
      <div class="custom-tooltip__title">
        <span>{{ hoverData.stockCode }}</span>
        <span>{{ formatTimestamp(hoverData.timestamp, { timeZone: 'Asia/Shanghai' }) }}</span>
      </div>
      <div
        class="custom-tooltip__price"
        :style="{ color: hoverData.close >= hoverData.open ? upColor : downColor }"
      >
        {{ hoverData.close.toFixed(2) }}
      </div>
      <div class="custom-tooltip__detail">
        O: {{ hoverData.open.toFixed(2) }}<br />
        H: {{ hoverData.high.toFixed(2) }}<br />
        L: {{ hoverData.low.toFixed(2) }}<br />
        C: {{ hoverData.close.toFixed(2) }}
      </div>
    </div>
  </template>
</KlineChart>

Slot Usage — Custom Main-Pane Legend:

Providing #legend fully replaces the default Canvas legend. The slot scope is the full LegendTemplateContext (OHLC, timeshare, main indicators, comparisons, layout, colors).

<template #legend="{ index, currentBar, timeshare, indicators, comparisons, colors }">
  <div class="my-legend">
    <!-- Custom fields added to KLineData[] for PR #98 are exposed through currentBar -->
    <div v-if="currentBar" class="my-legend__row">
      <span :style="{ color: currentBar.color }">
        开盘 {{ currentBar.open.toFixed(2) }} 最高 {{ currentBar.high.toFixed(2) }} 最低
        {{ currentBar.low.toFixed(2) }} 收盘 {{ currentBar.close.toFixed(2) }}
      </span>
      <span v-if="currentBar.volumeText"> Vol {{ currentBar.volumeText }}</span>
    </div>

    <div v-if="timeshare" class="my-legend__row">
      <span :style="{ color: timeshare.changeColor }">
        现价 {{ timeshare.price.toFixed(2) }} 涨幅 {{ timeshare.changePercent.toFixed(2) }}%
      </span>
    </div>

    <!-- Using main chart indicator legend data -->
    <div v-for="indicator in indicators" :key="indicator.name" class="my-legend__row">
      <span>{{ indicator.name }}:</span>
      <template v-for="value in indicator.values" :key="value.label">
        <span :style="{ color: value.color }">
          {{ value.label }} {{ value.value.toFixed(3) }}
        </span>
      </template>
    </div>
    <!-- Using comparison commodity data -->
    <div
      v-for="comparison in comparisons"
      :key="comparison.symbol"
      class="my-legend__row"
      :style="{ color: comparison.percentColor }"
    >
      {{ comparison.symbol }}
      {{ comparison.percent > 0 ? '+' : '' }}{{ comparison.percent.toFixed(2) }}%
    </div>
  </div>
</template>

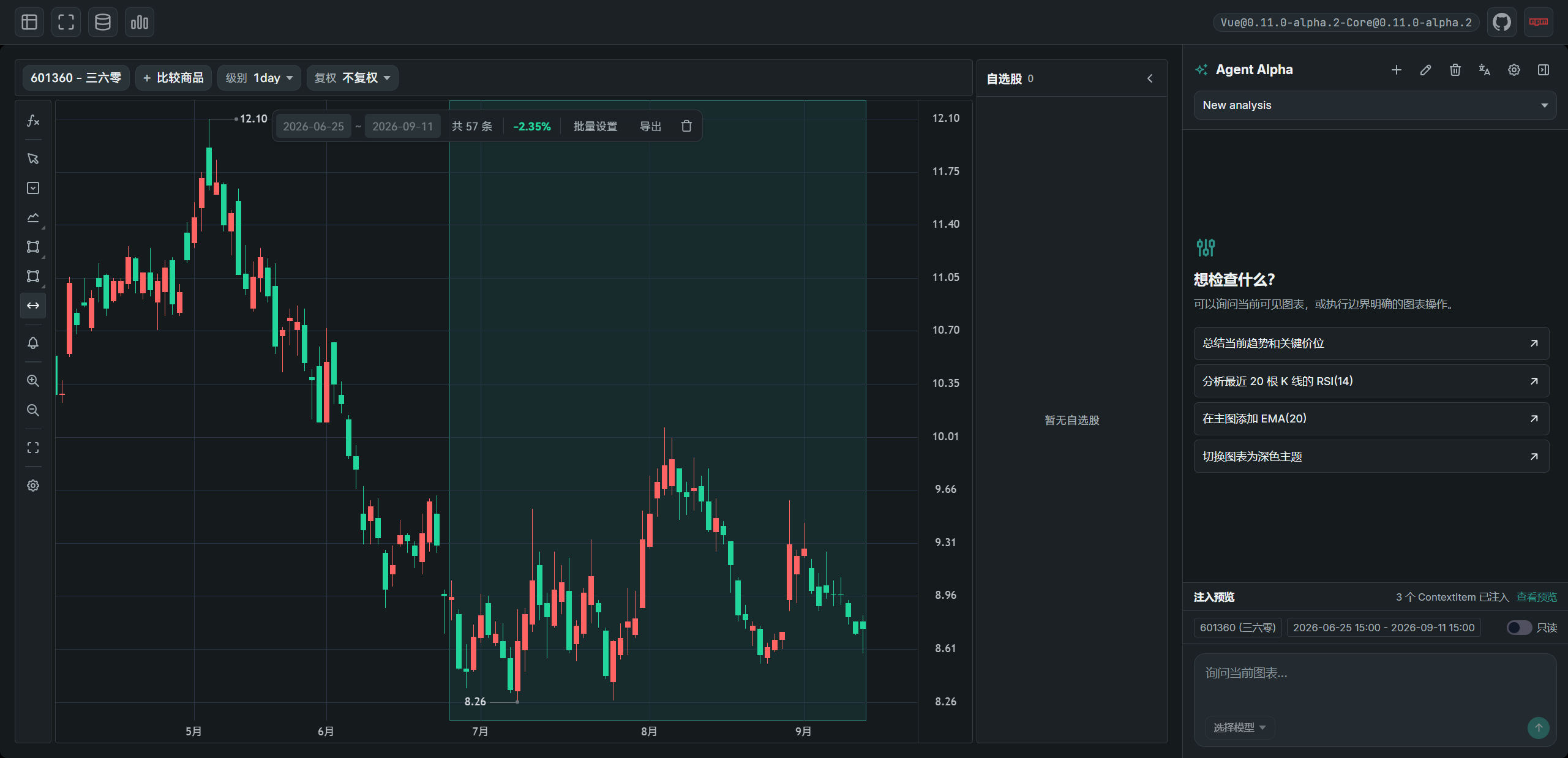

4. (Optional) Add AI Agent Control

The chart core exposes its domain capabilities as @Tool primitives. Both the UI and the Agent call them through the same path:

import { getRegisteredChartTools } from '@363045841yyt/klinechart-core/controllers'

getRegisteredChartTools() returns every tool with its parameter schema, safety level, and unified executor. Hand them to @363045841yyt/klinechart-agent-runtime, which orchestrates the Agent inside your app (browser or Electron) against a Provider profile — no MCP bridge, no side-channel state. See agent-runtime.

📖 More Documentation

• Rendering Pipeline - Current paint path: FrameTransaction, Scene/Layer, Renderer backends

📋 Component Props

Prop	Type	Default	Description
semanticConfig	SemanticChartConfig	—	Semantic configuration (optional). When provided, drives chart data, indicators, markers and chart options
theme	'light' | 'dark'	—	Chart theme. Use v-model:theme for two-way binding
isFullscreen	boolean	—	Controlled fullscreen state. Leave unbound for internal (non-controlled) mode
timezone	string	'Asia/Shanghai'	Time zone for date/time display
yPaddingPx	number	20	Y-axis padding in pixels
minKWidth	number	1	Minimum K-line width (logical pixels)
maxKWidth	number	50	Maximum K-line width (logical pixels)
rightAxisWidth	number	0	Right price axis width
leftAxisWidth	number	0	Left price axis width (0 = hidden)
bottomAxisHeight	number	24	Bottom time axis height
priceLabelWidth	number	60	Price label extra width for showing change percentage
zoomLevels	number	20	Total number of zoom levels
initialZoomLevel	number	3	Initial zoom level (1 ~ zoomLevels)
customData	CustomDataSource	—	Inline data bundle: { symbol?, period?, data, comparisons? }. Bypasses the fetcher pipeline entirely. See example above
teleportContainer	string | HTMLElement	—	Teleport target for dropdowns/modals (CSS selector or element). Defaults to internal .chart-wrapper
mcp	McpConfig	—	Deprecated legacy MCP bridge. Use the native Agent runtime (@Tool primitives) instead

🗺️ Roadmap

• v0.10: AI-native chart support
• K-line zoom anchor stability, improved zoom feel
• Right axis detached from scroll container, completely solving clipping issues
• Blank area drawing support
• Limit vertical pan range to prevent viewport from leaving data
• Drawing system
• Right axis zoom
• Latest price line and right axis label style optimization
• Area primitive tools and rendering
• More advanced drawing tools
• Support for minute, multi-day, monthly, and yearly K-line display
• Support convert the drawing to quant code

📦 Packages

Package	Description	npm
@363045841yyt/klinechart-core	Headless chart engine + controllers	npm
@363045841yyt/klinechart	Vue 3 bindings	npm
@363045841yyt/klinechart-react	React bindings	npm
@363045841yyt/klinechart-angular	Angular bindings	npm
@363045841yyt/klinechart-agent-runtime	Framework-neutral Agent runtime (Pi orchestration + host contracts)	—
@363045841yyt/klinechart-ai-runtime	Deprecated: legacy MCP addon, superseded by agent-runtime	npm

🚀 What's New

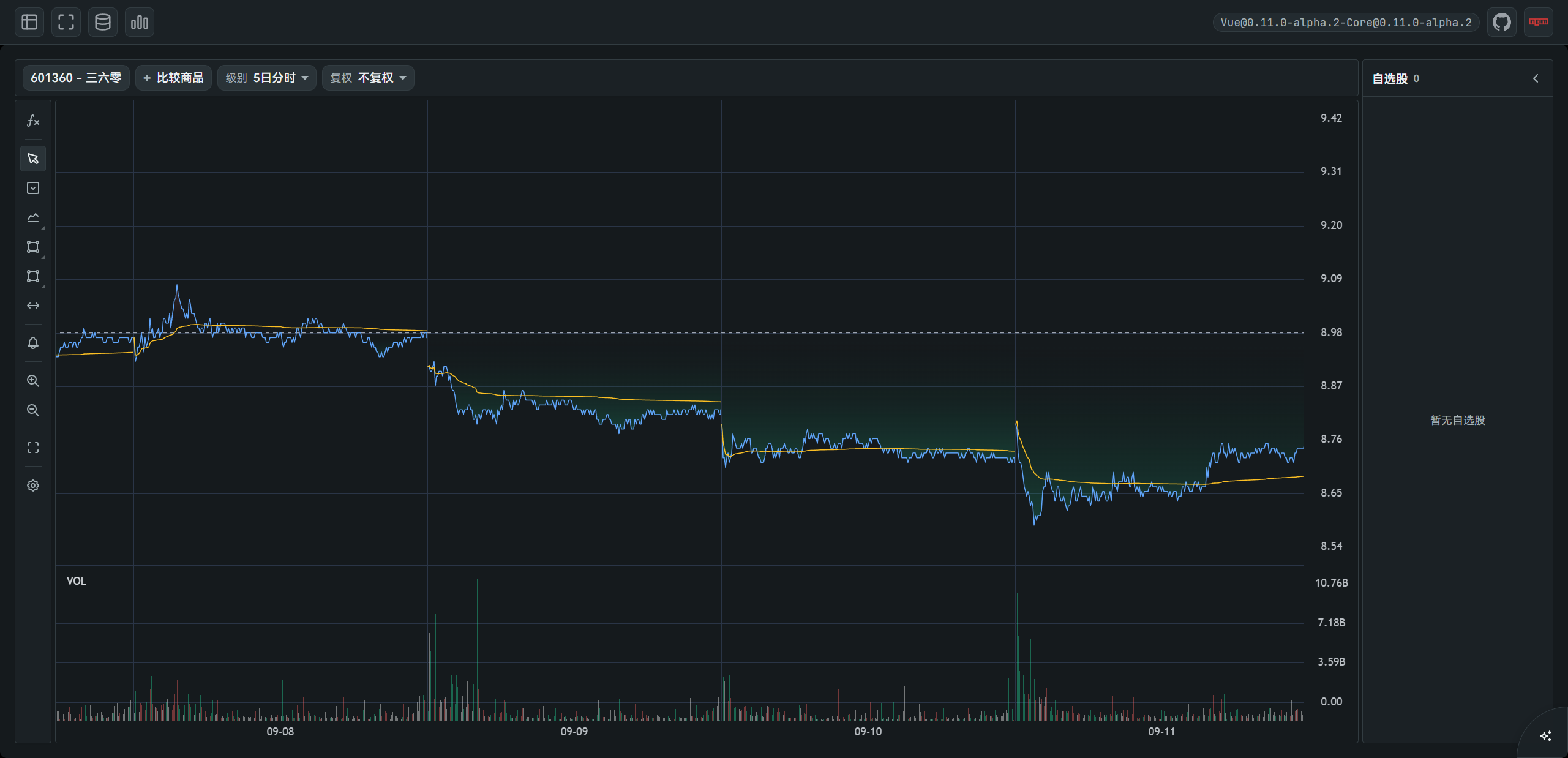

• v0.11 Introduced the AI Agent runtime (agent-runtime and AI runtime with OpenAI protocol support and a shared web/Electron Agent workspace) plus @tool registration and drawing Agent tools. Drawing gained sub-pane and timeshare support with workspace isolation, multi-select and batch editing, blank-area anchors, inline text editing, marquee group drag, and configurable labels; five-day timeshare, native timeshare indicators, and persistent view workspaces landed alongside WebGL-on-visible-canvas rendering.
• v0.10 Reworked the data layer around a unified MarketDataProvider, added multi-day timeshare, a unified indicator query pipeline shared by charts and Agents, Fibonacci/rectangle/arrow annotation tools, and promoted comparison to a first-class chart mode. Aligned the Vue/React/Angular bindings with the unified provider contract and shipped multiple rendering and state-consistency fixes.
• v0.9.0 Self-developed Core-layer reactive state model migration, timing issues eliminated
• v0.9.0 Single-path Scene renderer + WebGPU backend (hybrid DOM canvas, no compositeTo), FrameTransaction reactivity, device-lost recovery, auto-fallback WebGPU → WebGL → Canvas2D
• v0.8 Symbol comparison, multi-source data aggregation
• v0.7 Renderer registration chain AOP refactoring with decorator syntax, monorepo split, Vue/React bindings (experimental), standalone core package, tokenized color system
• v0.6.10 Unified WebGL rendering context sharing for all panes, plus sub-pane lifecycle refactoring — centralized pane instance management via SubPaneManager with first-class paneId identity
• v0.6.6 Comprehensive rendering optimizations: batched price-to-Y calculations, cached tick positions and geometry, optimized month-key operations; achieves stable 190-200fps on 200Hz displays with frame generation time down to 2ms
• v0.6.3 WebGL rendering for K-lines, volume bars, and MACD bars; significant performance boost across the board
• v0.6.1 Dual-layer canvas architecture: Main + Overlay separation with UpdateLevel filtering, achieves stable 180fps with low jitter on 200Hz displays
• v0.6.0 Stateless indicator pipeline: MA/BOLL/EXPMA/ENE/RSI/CCI/STOCH/MOM/WMSR/KST/FASTK now use unified Calculator → Scheduler → StateStore → Renderer architecture for better performance and maintainability
• v0.5.6 Logarithmic price axis with evenly distributed grid lines at pixel level
• v0.5.2 Advanced drawing tools: parallel channel, regression channel, smooth top/bottom, and non-intersecting channel
• v0.5.0 Complete drawing tool system, supporting line, rectangle, text drawing and style editing
• v0.4 Modern UI, left toolbar, right axis optimization, TradingView-style zoom feel

📄 License

MIT
