DiffSinger-ASM

Streaming and high-throughput DiffSinger synthesis on a laptop CPU. No GPU required.

DiffSinger-ASM runs the complete acoustic-to-waveform pipeline in C and handwritten x86-64 assembly. It keeps separate execution and performance contracts for low-latency streaming and large-block batch rendering because a single long-audio RTF cannot describe both workloads honestly.

On an Intel Core i5-13420H, the current 32-frame streaming profile keeps every measured region below RTF 1 with zero deadline misses. The independent 384-frame batch profile renders 31.208 seconds of audio in a median 22.031 seconds, an aggregate RTF of 0.706, entirely on the CPU.

Exported DiffSinger acoustic and NSF-HiFiGAN ONNX models are compiled offline into memory-mapped native bundles. ONNX Runtime helps pack and validate a voicebank, but the production inference path needs no ONNX Runtime, PyTorch, oneDNN, OpenVINO, MKL, BLAS, or GPU.

The product-facing libdsasm.so keeps one native engine per singer in process, reuses its model mappings, worker pool, and inference buffers, and publishes completed PCM blocks directly to the playback mixer. OpenUtau can therefore start playback from the first vocoder bucket instead of waiting for a complete phrase WAV.

Important

This remains an experimental, CPU-specific runtime, not a standalone singing editor. The v0.2 provider package contains the native ABI and offline model tool required by the matching OpenUtau integration, but it is not part of an upstream OpenUtau release. Bring your own compatible exported voicebank.

Current CPU Performance

Streaming and batch results are separate champions. For streaming, worst-region RTF below 1 is a real-time feasibility boundary: every block must finish before its playable audio is exhausted. It is not the score to minimize after the service gate passes. The optimization objective then moves to CPU-RTF and concurrent-track capacity while preserving zero deadline misses. Batch rendering continues to optimize complete E2E wall-time RTF. Results are never promoted by comparing one architecture with the other.

Contract	Current champion
Streaming workload	32 frames, 25 measured regions after 10 warm-ups
Streaming service gate	0.996841 largest worst-region RTF across three runs; required < 1
Streaming CPU-RTF	2.391249 maximum across three runs
Streaming deadlines	0 misses in every run
Streaming waveform quality	cosine 0.999292, SNR 28.49 dB
Batch workload	7 x 384-frame regions after 2 warm-ups
Batch generated audio	31207.619 ms
Batch median E2E latency	22031.032 ms
Batch median aggregate RTF	0.705950
Batch p90 / worst latency	24730.666 / 25563.829 ms
Batch waveform quality	cosine 0.999033, SNR 27.13 dB

Both profiles were measured on an Intel Core i5-13420H at PL1 45 W with the performance platform and EPP policies. Streaming uses four workers to reduce per-track CPU load; batch uses eight P-core/SMT workers for throughput. The batch champion improved its paired control by 8.02% while improving p90 and worst latency.

See the streaming policy and evidence, the batch policy and evidence, and the tracked batch raw samples. Historical M55/M58 long-audio results remain in the performance record, but are not current streaming or fixed-block champions. Results on other CPUs and voicebanks will vary.

Why Two Rendering Architectures?

Interactive playback and offline rendering put pressure on different parts of the system. One block size cannot minimize response time and maximize sustained throughput at the same time, so DiffSinger-ASM supplies two independently tuned engines:

Mode	Used for	Execution shape	Performance focus
Real-time streaming	Playback while editing	32-frame vocoder buckets, 8-frame overlap, 4 workers, progressive PCM callbacks	Service constraint: worst-region RTF below 1 with zero deadline misses. Optimization after that: CPU-RTF and concurrent-track capacity
Block batch	Pre-render, mixdown, and export	384-frame buckets, no overlap, 8 workers, complete blocks	End-to-end throughput, aggregate RTF, p90 and worst latency, and run-to-run stability

Small streaming blocks bound the time before the mixer receives audio, but they repeat scheduling, synchronization, and overlap work more often. Large batch blocks amortize that overhead and keep more arithmetic in flight, but waiting for a large block would make interactive playback feel unresponsive. Separate worker counts and kernels let each workload optimize the cost that its user actually notices.

The streaming metrics form a staged optimization gradient. Before the service gate is reached, reducing the largest worst-region RTF is necessary. After it is reached, a lower RTF does not by itself make a better streaming engine: a candidate advances by reducing CPU-RTF and increasing usable track capacity while every region remains below 1 and every deadline still passes. Batch RTF has a different meaning because batch users are waiting for the complete job.

The modes are execution choices, not quality levels. Both pass the same model correctness and waveform quality gates, and both declare output compatibility revision 1. Once either mode completes a phrase, OpenUtau may reuse that canonical PCM for later playback, pre-rendering, mixdown, or export.

Why Native Assembly?

• Each product mode has its own target. Streaming protects deadlines and CPU capacity; batch rendering maximizes complete E2E throughput.
• The hot path stays small. Runtime dependencies are only libc, libm, and pthread, with no framework startup, graph planner, or provider dispatch.
• Kernels match deployed shapes. Handwritten AVX2/FMA code handles FP32 operators; asymmetric AVX-VNNI accelerates quality-gated vocoder stages.
• Models are prepared ahead of time. Fixed shapes, packed weights, fused residual operations, and memory-mapped bundles move work out of inference.
• Persistent workers keep the CPU busy. Scheduling is tuned for the performance cores and avoids rebuilding execution state for every request.
• Speed never bypasses quality. Releases must pass waveform parity, stability, p90, and worst-case gates before they are promoted.

Built for OpenVPI DiffSinger

This project is an independent native inference runtime for deployment models exported by the OpenVPI-maintained DiffSinger project. It does not train voicebanks and does not replace the upstream variance model or score frontend. The integrated OpenUtau renderer constructs those inputs and selects this runtime as an alternative to ONNX Runtime.

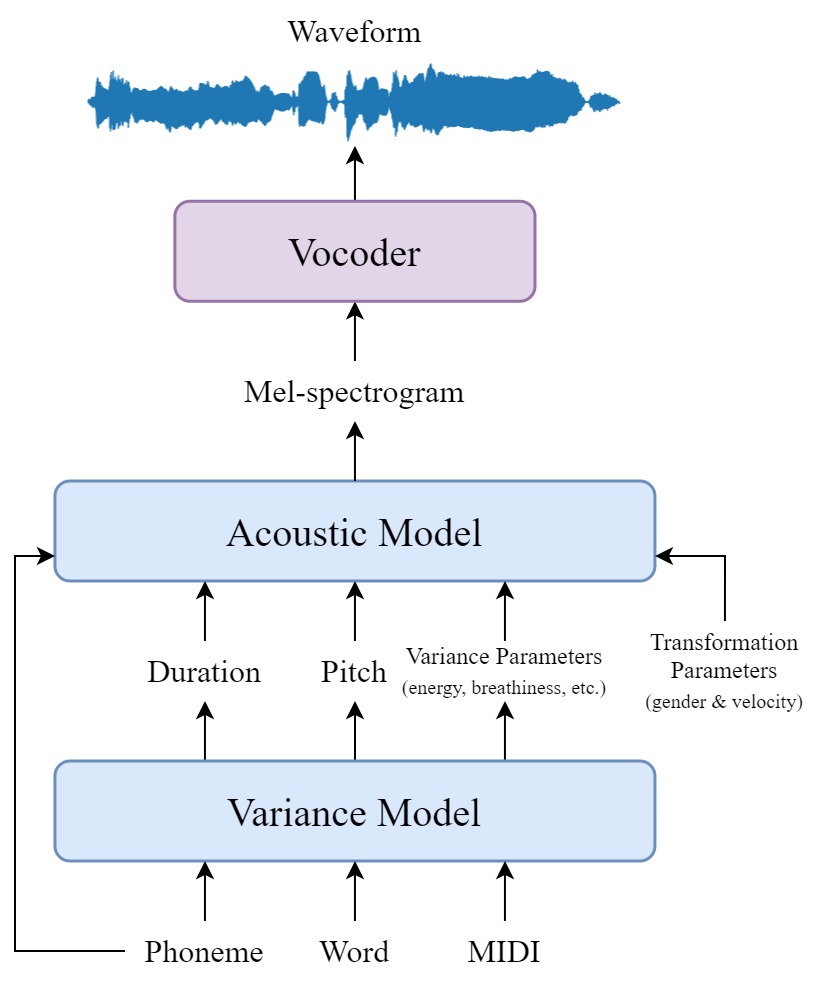

_{DiffSinger architecture overview from OpenVPI/DiffSinger, licensed under Apache-2.0.}

Use the upstream ecosystem to prepare a model and musical inputs, then use DiffSinger-ASM for the acoustic and vocoder execution stages:

• DiffSinger user guidance and Getting Started
• MakeDiffSinger for dataset and voicebank preparation
• OpenUtau for production-oriented score editing and synthesis workflows
• DiffSinger paper and OpenVPI implementation

Install and Use

DiffSinger-ASM is used through the matching OpenUtau build. Normal users do not need a compiler, Python, ONNX Runtime, or command-line setup.

1. Download and extract the Linux x64 build from AntheaLaffy's OpenUtau releases.
2. Download and extract the latest DiffSinger-ASM provider. In OpenUtau, open Preferences > Rendering, select the provider's lib/libdsasm.so under DiffSinger ASM native library, and confirm that its status is ready.
3. On a DiffSinger track, select DIFFSINGER-ASM as the renderer.
4. Open Tools > Singers, select the voicebank, and choose Convert current model. OpenUtau retains the ONNX source and publishes the converted model only after validation succeeds.

The singer is ready when its status changes to ASM model installed. Complete pre-renders and completed real-time renders share the canonical PCM cache, so playback reuses audio OpenUtau has already rendered.

The provider currently requires Linux x86-64 with AVX2 and FMA. Conversion adds about 550 MB per singer and can take several minutes. Unsupported model graphs are reported without modifying the source voicebank.

Develop and Use the CLI

The release package already includes its offline dependencies. A source checkout needs a C toolchain, GNU Make, binutils, CPython 3.12, and uv:

git clone https://github.com/Asmory/DiffSinger-ASM.git
cd DiffSinger-ASM
python3.12 -m venv .venv
. .venv/bin/activate
python -m pip install -r tools/model-tool-requirements.in

Install PyTorch in this environment when working on checkpoint importers or golden/parity validation. Install Linux perf when profiling. See the developer guide for dependency boundaries, repository layout, agent and tool routing, experiment scheduling, validation gates, benchmark rules, packaging, and OpenUtau integration. It translates the core rules in AGENTS.md into a workflow intended for both human contributors and coding agents.

Build from source

make -j"$(nproc)" engine-check
make -j"$(nproc)" package VERSION=v0.2.2

This produces build/libdsasm.so and a self-contained archive under release/. The package embeds Python, NumPy, ONNX, and ONNX Runtime for offline conversion; native inference does not load them.

Check CPU features when testing a local build:

grep -m1 -oE 'avx2|fma|avx_vnni' /proc/cpuinfo | sort -u

Model protocol CLI

Inspect, plan, convert into caller-owned staging, and validate without loading the native runtime:

package=/absolute/path/to/diffsinger-asm-v0.2.2-linux-x86_64
singer=/absolute/path/to/singer

"$package/bin/dsasm-model-tool" inspect \
  --protocol 1 --singer-root "$singer" --json
"$package/bin/dsasm-model-tool" plan \
  --protocol 1 --singer-root "$singer" --json
"$package/bin/dsasm-model-tool" convert \
  --protocol 1 --singer-root "$singer" \
  --expected-source-fingerprint SHA256_FROM_PLAN \
  --staging /path/on/singer/filesystem/staging \
  --work /path/to/reusable/work --jsonl
"$package/bin/dsasm-model-tool" validate \
  --protocol 1 --bundle /path/on/singer/filesystem/staging --json

Conversion always produces the 32- and 384-frame product buckets and writes bundle.json only after offline validation succeeds. Staging must be empty and must not overlap the reusable work directory. SIGINT cancels and reaps the active packer process group before the tool returns. The tool never publishes current.json; OpenUtau owns the atomic generation commit.

The direct packer commands below are retained for development and standalone debugging. Product integrations should use dsasm-model-tool so compatibility, fingerprints, estimates, reason codes, and validation stay on one versioned boundary.

The standalone acoustic and vocoder executables remain available for model inspection, parity checks, and debugging:

make -j"$(nproc)" build/dsasm-acoustic build/dsasm-vocoder-m40

Pack the acoustic model into the singer's default ASM directory:

python tools/pack_acoustic_onnx_m25.py /path/to/voicebank/acoustic.onnx \
  --model-dir /path/to/voicebank \
  --out /path/to/singer/dsasm/acoustic

build/dsasm-acoustic inspect /path/to/singer/dsasm/acoustic

Compile the two product vocoder buckets. The filenames are part of the engine contract; each graph remains fixed-shape internally:

mkdir -p /path/to/singer/dsasm/vocoder
for frames in 32 384; do
  python tools/pack_vocoder_graph_m35.py \
    /path/to/voicebank/dsvocoder/nsf_hifigan.onnx \
    --frames "$frames" \
    --vnni-scope all-k711 \
    --residual-scope all3711 \
    --out "/path/to/singer/dsasm/vocoder/$frames.dsv35" \
    --work "build/packer-$frames"
done

OpenUtau package discovery

Selecting an extracted provider's lib/libdsasm.so lets OpenUtau discover bin/dsasm-model-tool from the same package root. Automated deployments may set OPENUTAU_DSASM_LIBRARY to the library. Source-checkout development may use DIFFSINGER_ASM_HOME and the explicit OPENUTAU_DSASM_MODEL_TOOL override.

Published singers use an immutable generation selected by one pointer:

<singer>/dsasm/current.json
<singer>/dsasm/generations/<generation>/bundle.json
<singer>/dsasm/generations/<generation>/acoustic/...
<singer>/dsasm/generations/<generation>/vocoder/32.dsv35
<singer>/dsasm/generations/<generation>/vocoder/384.dsv35

Projects use the fixed renderer IDs DIFFSINGER for ONNX and DIFFSINGER-ASM for this provider. Selecting ASM reports incompatibility or runtime unavailability instead of silently changing backend. Switching to ASM may inspect compatibility silently, but conversion remains an explicit user action.

ABI v3 rejects configurations it cannot reproduce, including energy conditioning and pitch-controllable vocoders. ASM and ONNX renders use separate WAV cache keys. Both ASM modes declare output compatibility revision 1, so a complete pre-render can satisfy later playback and a completed real-time render can satisfy later batch use. Partial PCM is published only to the active playback session; it enters the complete render cache only after the unique final chunk arrives.

The native engine exposes separate four-worker/32-frame real-time and eight-worker/384-frame batch modes. OpenUtau chooses the mode from whether the render is consumed progressively during playback or as a complete block.

Direct inference CLI

For standalone CLI debugging, text vector files accept whitespace- or comma-separated values; F0 and optional variance curves contain one value per acoustic frame:

build/dsasm-acoustic infer /path/to/singer/dsasm/acoustic \
  --tokens tokens.txt \
  --durations durations.txt \
  --f0 f0.txt \
  --language-id 4 \
  --speaker-emb /path/to/singer.emb \
  --depth 0.6 \
  --steps 4 \
  --out mel.f32

Then synthesize a waveform with a bundle whose fixed frame count exactly matches the CLI input:

build/dsasm-vocoder-m40 infer /path/to/singer/dsasm/vocoder/384.dsv35 \
  --mel mel.f32 \
  --f0 f0.f32 \
  --out wave.f32 \
  --wav output.wav \
  --workers 8 \
  --rounds 3

The acoustic CLI does not perform text/phoneme parsing or score preparation. sum(durations) must equal the F0 frame count, and the vocoder bundle must have been compiled for that same frame count. A deployed model may also require language and speaker inputs; inspect reports the enabled features. dsasm-acoustic accepts F0 as text, while dsasm-vocoder-m40 expects the same curve as raw native-endian float32 (f0.f32). Mel and waveform .f32 files are also headerless float32 arrays.

Best Inference Profile

ABI v3 mode configuration records the worker, region, bucket, and overlap values that passed each architecture's current end-to-end gate. Runtime defaults select the corresponding shape-gated graph and kernel paths. config/best-inference.env preserves the common environment controls used for benchmark reproduction.

. config/best-inference.env
env | grep '^DSASM_' | sort

Do not use the promoted AVX-VNNI settings on a CPU without AVX-VNNI. Local source builds default to -march=native; optional AVX-VNNI vocoder paths remain runtime-gated.

Verification

Build the shared library, validate ABI layout and exported dependencies, and run the real-model streaming test when local packed artifacts are available:

make -j"$(nproc)" engine-check
make model-tool-check
make engine-real-stream-check \
  ENGINE_REAL_ACOUSTIC=/path/to/packed/acoustic \
  ENGINE_REAL_VOCODER=/path/to/packed/vocoder

Run the core native regression checks:

make -j"$(nproc)" m40-1-check m38-check m58-check

Run the promoted residual-kernel benchmark and its parity gate:

make m58-bench

The full real-voicebank E2E comparison needs locally prepared model and fixture artifacts and is documented in docs/PERFORMANCE.md. Voicebanks and singer embeddings are intentionally not distributed here.

The native ABI v3 exposes explicit real-time streaming and block batch modes. Mode configuration is queryable, and mode engines reject mismatched request modes, buckets, or overlap values. See the OpenUtau binding contract.

Architecture

Exported voicebank (offline)
  acoustic.onnx ----> DSFS25 + DSAUX20 + DSLYNX7
  nsf_hifigan.onnx -> 32 / 384-frame DSVOC35 buckets

Native inference (online)
  OpenUtau score + curves -> stable C ABI -> persistent singer engine
                          -> FastSpeech2 -> Aux decoder -> Rectified Flow
                          -> mel + F0 -> bucketed NSF-HiFiGAN
                          -> PCM chunk callbacks -> MixPlanner -> playback

The packed files are validated and memory-mapped. Large operators use handwritten assembly; scheduling, graph execution, and control math remain in small C runtimes. include/dsasm_engine.h is the stable product boundary; lower-level headers remain implementation-oriented.

Documentation

• Developer guide
• Performance policy and current evidence
• Dual-architecture optimization strategy
• Real-time streaming performance policy
• Block batch performance policy
• CPU runtime implementation policy
• Stable engine ABI and streaming contract
• Offline model protocol
• OpenUtau supply contract draft
• v0.2.2 release notes
• v0.2.1 release notes
• Manual validation and release process
• Deployment ONNX import
• Real-model acceptance
• Pure-native vocoder executor
• Current residual-fusion milestone
• Packed model formats

The milestone documents preserve the engineering history. New users should start with this README and treat older milestone commands as experiments rather than the recommended release path.

Project Status

DiffSinger-ASM is an active performance-engineering project from Asmory. The supported surface is intentionally narrow: Linux, x86-64, and exported DiffSinger graphs compatible with the included importers. Model compatibility, quality, and speed should be validated on your own workload before deployment. Validation and releases are run locally; the repository intentionally has no hosted CI or continuous deployment workflow.

No voicebank, singer identity, or third-party model weights are included in the repository or release archives.

Use voice models only with the voice owner's consent. This project follows the upstream DiffSinger responsible-use notice: do not use it to generate a person's voice without permission.
