* The data is extracted using {quantmod} and is stored
as an <xts>-object that is to be used for examples, vignettes
and tests.
* The added class will ease the downstream coding process when adding <xts>-methods to the indicators.
* The index refers to the time-index of the object passed into the indicator functions. By default, for <matrix> and <data.frame>, it (was) is assumed that these are given in the rownames() of the passed OHLC-V object. For an <xts>-object the time-index is given as the index attribute - that is just how <xts> works which necessitates this change. * With this introduction <xts>, <data.frame> and <matrix> objects can be handled in the default method which reduces the number of lines changed for the introduction of the <xts>-methods. Any changes and bugs can potentially be handled in the dispatching functions like, for example, series.xts() to avoid a mass change in files for a simple bug.
* The signature of the series function is now more "straightforward," in the sense that there are no dispatch switching conditional on how the arguments are passed. This was a change that was long due, as it was a rather confusing construction. The series() is now a more proper S3 function that has a method for each of the relevant data classes. * A new (classed) method has been introduced to accomodate the <xts> methods in the indicator functions. The method adds an explicit class to the <xts> method such that the <xts> methods can implemented without further changes to the default methods on the indicator side. There have been introduced a wide variety of functions in utils.R to accomodate this change. * Unit-tests have been rewritten so it fits the new series() structure, which has the same underlying logic but a changed input arguments.
* <xts> methods have been added to all non-rolling indicators (these are considered utility functions) which follows the same underlying logic as the <data.frame> and <matrix> methods; ie. it dispatches to the default method. - The logic are handled by series() and utils.R via S3 classes * The most "important" change here is that the indicators moves from using rownames to index in the argument naming. This is to introduce some sort of consistency across the methods (<xts> does not have any rownmes). Under the hood <data.frame> and <matrix> methods still sets the rowname attribute while <xts> sets the index attribute of the resulting indicator.
* series.xts() now resolves each formula variable to exactly one column
- exact name matches first, then quantmod-style suffix matches
(close -> TICKER.Close), both case-insensitive and regex-free - and
returns the columns in formula order, so the C layer receives
high/low/close/... in the positions the indicator expects regardless
of the physical column layout of the <xts>.
* This fixes silently wrong values for multi-input indicators on
reordered or substring-colliding column layouts, honors explicit
'cols =' selections exactly, errors on missing or ambiguous columns
instead of computing on arbitrary ones, and accepts lowercase
open/high/low/close names.
* Unused model.frame-arguments ('subset',
...) now warn instead of being silently dropped. Chart data overrides
with quantmod-named <xts> (indicator(RSI, data = x)) resolve through
the same path and now work.
* Every .xts method now calls assert_xts(): the {xts} namespace is
loaded on demand via requireNamespace(), with a clear error when the
package is not installed. library(talib); RSI(GOOGL) works in vanilla
sessions - and in zoo-only sessions - instead of dying with
'subscript out of bounds'; the GOOGL man-page example runs under
R CMD check again.
* set_index() gained a default method with a clear message, replacing
the bare 'no applicable method' failure on malformed <xts>-classed
input.
* trading_volume() received the xts rollout the generated wrappers
already had: index()/set_index() plumbing, a trading_volume.xts
method, and the <ta_object> class stamp in src/volume.c that every
generated C wrapper attaches via wrapper.h - VOLUME(xts) returns a
proper <xts> carrying the input's index and the actual volume column.
trading_volume.matrix now wraps in as.matrix() like the template, so
matrix output stays a plain <matrix>.
* Regenerated wrappers via make codegen; the only generated diff is
the assert_xts() guard in each of the 129 .xts methods.
* All seven rolling generics (rolling_maximum, rolling_minimum,
rolling_sum, rolling_standard_deviation, rolling_variance,
rolling_beta, rolling_correlation) gained an .xts method: a
single-column <xts> in, an <xts> out carrying the input's index and
the statistic's column name (MAX, BETA, ...), with values identical
to the vector path. For the bivariate pair, 'y' may be a vector or a
single-column <xts>; pairing is positional.
* Multi-column input is now rejected with a clear error ('Expected
'x' to be univariate.') instead of being silently flattened
column-major into one concatenated series - the guard is generated
per series argument into .default and .xts, covering xts and matrix
input alike. This matches TTR::runMax's univariate contract, and
runMax/MAX now agree exactly on identical input.
* Vector returns from the rolling family drop the stale
c('ta_object','matrix','array') class alongside the dim-strip - a
dimensionless vector no longer claims inherits(., 'matrix') - while
keeping the lookback attribute.
* Wiring: ${SERIES_GUARD} placeholder in render.rs,
rolling_template.R .xts block, generated xts value-parity and
multivariate-error test blocks in testthat.rs (guarded by
skip_if_not_installed('xts')), and the rolling man-roxygen templates
now document the xts contract. Also corrected the template's
fresh-render call site (${C_NUMERIC},,, -> ${C_NUMERIC},), a latent
syntax bug masked by splice preservation.
* The .numeric methods strip the internal class unconditionally:
single-output results are plain double vectors (dim and class
dropped), multi-output results are plain matrices carrying the
implicit c('matrix','array') class - the C-stamped
c('ta_object','matrix','array') tag no longer leaks out of the
vector fast path. Column names and the lookback attribute are kept,
inherits(x, 'matrix') finally agrees with is.matrix(x), and base
as.matrix()/as.data.frame() coerce the results correctly.
* Unknown arguments landing in '...' on the numeric path now warn
("'...' is passed but is unused for vectors.") instead of being
silently swallowed - the only signal a case-typo'd parameter name
(timeperiod = 10) will ever produce. Passing 'cols' keeps its
existing warn-and-compute behavior.
* Generated numeric tests lock the new shapes:
expect_false(inherits(x, 'matrix')) for single-output,
expect_identical(class(x), c('matrix', 'array')) for multi-output.
Closed
4 tasks
Codecov Report❌ Patch coverage is
Additional details and impacted files@@ Coverage Diff @@
## devel #85 +/- ##
==========================================
- Coverage 96.01% 95.94% -0.07%
==========================================
Files 162 162
Lines 19716 21676 +1960
==========================================
+ Hits 18930 20797 +1867
- Misses 786 879 +93 ☔ View full report in Codecov by Harness. 🚀 New features to boost your workflow:
|
* tests/testthat/helper-library.R attaches {xts} only when it is
installed, and every generated <xts> test block carries
skip_if_not_installed('xts') - the suite no longer hard-depends on a
Suggests package (verified against a library with xts/zoo hidden:
everything loads, the xts blocks skip cleanly, zero failures).
* Every generated test file gained a 'Value parity with <data.frame>
(<xts>)' block: the <xts> result must equal the lowercase
<data.frame> reference numerically, both on the GOOGL fixture and on
an alphabetically sorted copy that places 'Adjusted' before the OHLCV
columns - locking the column-resolution contract (formula order,
suffix matching, no substring collisions) for all 129 indicators.
* test-series.R gained unit tests for the <xts> resolution layer
itself: formula-order selection, quantmod-style suffix matches,
lowercase names, explicit 'cols =' order, and the error/warning
contracts (no match, ambiguity, short formula, unused 'subset');
plus a vanilla-session subprocess regression (skip_on_cran) proving
RSI(GOOGL) works without {xts} attached.
* series() gained a default method that defers any classed input to as.data.frame() before column resolution - a multivariate zoo (or any data.frame-coercible object) now computes on the coerced frame with the index as rownames, instead of dying with the internal "no applicable method for 'series'" error. Uncoercible inputs fail with base R's own coercion message naming the class. * The indicator documentation now states the actual per-class contract: xts in, xts out alongside data.frame/matrix; coercible inputs computed on the coerced data.frame; the xts column resolution (exact matches first, then quantmod-style suffix matches, consumed in formula order) documented under 'cols'; and '...' marked unused for xts input. * index_data_frame(), index_matrix() and index_xts() in src/names.c now return SEXP (R_NilValue) as Writing R Extensions requires for .Call routines - previously void, an undefined-behavior read of the return register. A registration sweep confirms no other void .Call routines remain.
* The chart dispatch no longer calls ...names() (R >= 4.1): the argument names are already captured by the substitute() call one line above, so names(dots_quoted) carries the identical information. * nullfile() (R >= 4.0) is replaced by an internal .nullfile() in the small base-R replacements section of utils.R, returning the platform null device; the three render-path call sites in chart_indicator.R now use it. Verified against the single-panel print, the multi-panel grob alignment and the print-guard paths. * The pattern-marker data.frames in chart_pattern.R set stringsAsFactors = FALSE explicitly - the default flipped in R 4.0, and the declared floor predates the flip. **NOTE:** This was captured during an adversial review by Fable.
* trading_volume() on a vector no longer errors on the default maType: the numeric splice converts the specifications like .default does.
* 'subset' is evaluated exactly once, by model.frame(), identically on every route (direct data.frame call, wrapper-on-chart, indicator()): data-context expressions like subset = close > 60000 now work everywhere, columns of the data win over caller objects, and the caller's frame is the fallback. The internal re-evaluations that crashed data-context expressions - and evaluated side-effecting expressions up to three times - are gone; the subset attribute now records the row positions model.frame() actually kept. * Arguments on the chart path resolve in the caller's frame: data =/subset = referencing function-local objects work from inside function bodies. indicator() keeps 'subset' quoted and evaluates the wrapper call in the caller's frame, so all routes share one semantic. * The ggplot2 backend aligns indicator positions by axis label, mirroring plotly - indicators computed with subset = are drawn at the subset's own candles instead of positions 1..n. * indicator(FUN, data = y) no longer silently stamps the chart's dates onto a mismatched override: a length mismatch warns and the trace is labelled with the override's own rownames. * chart() normalizes quantmod-style OHLCV names (TICKER.Close, Close) to the lowercase names the backends consume - exact matches first, then dot-suffix matches, mirroring series.xts() - and fails fast with the package's own missing-columns message instead of an opaque backend error at render time. Standalone indicator() with <xts> data keeps its time axis.
* Added <xts>-method mention, and removed the minimal dependency argument - even though xts and zoo are suggested it is still a departure from the minimal dependency framework. * Replaced BTC with GOOGL to demonstrate <xts> compatibility with class in and class out condtion.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
📚 What?
This PR introduces - and -methods in {talib}. The methods are compatible with with the indicator and charting functions out of the box (See below). It comes with significant changes to the backend to reduce the amount of code needed to implement it.
The PR introduces alot of dead code which will be cleaned up in a separate PR, and many bug-fixes identified during adversial reviews - these will be documented in the NEWS.md separately.

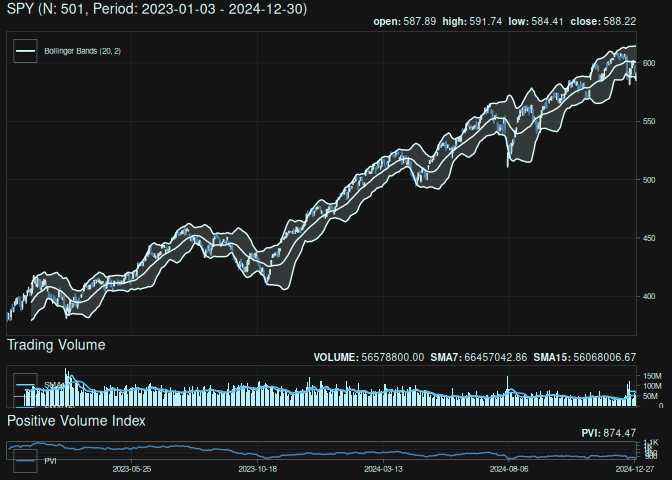

🔥 Proof of Concept
Created on 2026-08-05 with reprex v2.1.1
